Source Code

File: examplewindow.h

#ifndef GTKMM_EXAMPLEWINDOW_H
#define GTKMM_EXAMPLEWINDOW_H

#include <gtkmm.h>

class ExampleWindow : public Gtk::Window
{
public:
  ExampleWindow();
  virtual ~ExampleWindow();

protected:

  //Child widgets:
  Gtk::Frame m_Frame;
};

#endif //GTKMM_EXAMPLEWINDOW_H

File: examplewindow.cc

#include "examplewindow.h"

ExampleWindow::ExampleWindow()
{
 /* Set some window properties */

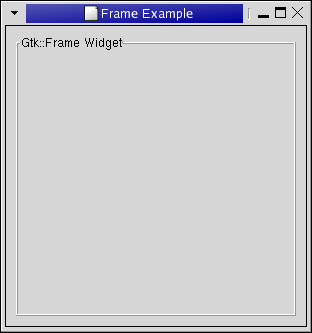

  set_title("Frame Example");
  set_size_request(300, 300);

  /* Sets the border width of the window. */
  set_border_width(10);

  add(m_Frame);

  /* Set the frames label */
  m_Frame.set_label("Gtk::Frame Widget");

  /* Align the label at the right of the frame */
  //m_Frame.set_label_align(Gtk::ALIGN_RIGHT, Gtk::ALIGN_TOP);

  /* Set the style of the frame */
  m_Frame.set_shadow_type(Gtk::SHADOW_ETCHED_OUT);

  show_all_children();
}

ExampleWindow::~ExampleWindow()
{
}

File: main.cc

#include <gtkmm/main.h>
#include "examplewindow.h"

int main(int argc, char *argv[])
{
  Gtk::Main kit(argc, argv);

  ExampleWindow window;
  Gtk::Main::run(window); //Shows the window and returns when it is closed.

  return 0;
}

Source Code

File: examplewindow.h

#ifndef GTKMM_EXAMPLEWINDOW_H
#define GTKMM_EXAMPLEWINDOW_H

#include "messageslist.h"
#include "messagetext.h"
#include <gtkmm.h>

class ExampleWindow : public Gtk::Window
{
public:
  ExampleWindow();
  virtual ~ExampleWindow();

protected:

  //Child widgets:
  Gtk::VPaned m_VPaned;
  MessagesList m_MessagesList;
  MessageText m_MessageText;
};

#endif //GTKMM_EXAMPLEWINDOW_H

File: messageslist.h

#ifndef GTKMM_EXAMPLE_MESSAGESLIST_H
#define GTKMM_EXAMPLE_MESSAGESLIST_H

#include <gtkmm.h>

class MessagesList: public Gtk::ScrolledWindow
{
public:
  MessagesList();
  virtual ~MessagesList();

  class ModelColumns : public Gtk::TreeModel::ColumnRecord
  {
  public:

    ModelColumns()
    { add(m_col_text); }

    Gtk::TreeModelColumn<Glib::ustring> m_col_text;
  };

  ModelColumns m_Columns;

protected:
  Glib::RefPtr<Gtk::ListStore> m_refListStore; //The Tree Model.
  Gtk::TreeView m_TreeView; //The Tree View.
};
#endif //GTKMM_EXAMPLE_MESSAGESLIST_H

File: messagetext.h

#ifndef GTKMM_EXAMPLE_MESSAGETEXT_H
#define GTKMM_EXAMPLE_MESSAGETEXT_H

#include <gtkmm.h>

class MessageText : public Gtk::ScrolledWindow
{
public:
  MessageText();
  virtual ~MessageText();

  virtual void insert_text();

protected:
  Gtk::TextView m_TextView;
};

#endif //GTKMM_EXAMPLE_MESSAGETEXT_H

File: examplewindow.cc

#include "examplewindow.h"

ExampleWindow::ExampleWindow()
{

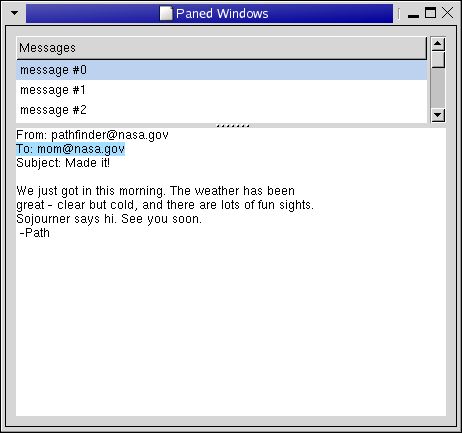

  set_title ("Paned Windows");
  set_border_width(10);
  set_default_size(450, 400);

  /* Add a vpaned widget to our toplevel window */
  add(m_VPaned);

  /* Now add the contents of the two halves of the window */
  m_VPaned.add1(m_MessagesList);
  m_VPaned.add2(m_MessageText);

  show_all_children();
}

ExampleWindow::~ExampleWindow()
{
}

File: main.cc

#include <gtkmm/main.h>
#include "examplewindow.h"

int main(int argc, char *argv[])
{
  Gtk::Main kit(argc, argv);

  ExampleWindow window;
  Gtk::Main::run(window); //Shows the window and returns when it is closed.

  return 0;
}

File: messageslist.cc

#include "messageslist.h"
#include <sstream>

MessagesList::MessagesList()
{
  /* Create a new scrolled window, with scrollbars only if needed */
  set_policy(Gtk::POLICY_AUTOMATIC, Gtk::POLICY_AUTOMATIC);

  add(m_TreeView);

  /* create list store */
  m_refListStore = Gtk::ListStore::create(m_Columns);

  m_TreeView.set_model(m_refListStore);

  /* Add some messages to the window */
  for(int i = 0; i < 10; ++i)
  {
    std::ostringstream text;
    text << "message #" << i;

    Gtk::TreeModel::Row row = *(m_refListStore->append());
    row[m_Columns.m_col_text] = text.str();
  }

  //Add the Model's column to the View's columns:
  m_TreeView.append_column("Messages", m_Columns.m_col_text);

  show_all_children();
}

MessagesList::~MessagesList()
{
}

File: messagetext.cc

#include "messagetext.h"

MessageText::MessageText()
{
  set_policy(Gtk::POLICY_AUTOMATIC, Gtk::POLICY_AUTOMATIC);

  add(m_TextView);
  insert_text();

  show_all_children();
}

MessageText::~MessageText()
{
}

void MessageText::insert_text()
{
  Glib::RefPtr<Gtk::TextBuffer> refTextBuffer = m_TextView.get_buffer();

  Gtk::TextBuffer::iterator iter = refTextBuffer->get_iter_at_offset(0);
  refTextBuffer->insert(iter,
    "From: pathfinder@nasa.gov\n"
    "To: mom@nasa.gov\n"
    "Subject: Made it!\n"
    "\n"
    "We just got in this morning. The weather has been\n"
    "great - clear but cold, and there are lots of fun sights.\n"
    "Sojourner says hi. See you soon.\n"
    " -Path\n");
}

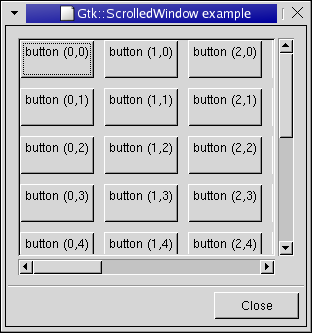

Here is a simple example that packs 100 toggle buttons into a ScrolledWindow. Try resizing the window to see the scrollbars react.

Source Code

File: examplewindow.h

#ifndef GTKMM_EXAMPLEWINDOW_H
#define GTKMM_EXAMPLEWINDOW_H

#include <gtkmm.h>

class ExampleWindow : public Gtk::Dialog
{
public:
  ExampleWindow();
  virtual ~ExampleWindow();

protected:
  //Signal handlers:
  virtual void on_button_close();

  //Child widgets:
  Gtk::ScrolledWindow m_ScrolledWindow;
  Gtk::Table m_Table;
  Gtk::Button m_Button_Close;
};

#endif //GTKMM_EXAMPLEWINDOW_H

File: examplewindow.cc

#include "examplewindow.h"
#include <stdio.h> //For sprintf()

ExampleWindow::ExampleWindow()
: m_Table(10, 10),
  m_Button_Close("Close")
{
  set_title("Gtk::ScrolledWindow example");
  set_border_width(0);
  set_size_request(300, 300);

  m_ScrolledWindow.set_border_width(10);

  /* the policy is one of Gtk::POLICY AUTOMATIC, or Gtk::POLICY_ALWAYS.
   * Gtk::POLICY_AUTOMATIC will automatically decide whether you need
   * scrollbars, whereas Gtk::POLICY_ALWAYS will always leave the scrollbars
   * there.  The first one is the horizontal scrollbar, the second,
   * the vertical. */
  m_ScrolledWindow.set_policy(Gtk::POLICY_AUTOMATIC, Gtk::POLICY_ALWAYS);

  get_vbox()->pack_start(m_ScrolledWindow);

  /* set the spacing to 10 on x and 10 on y */
  m_Table.set_row_spacings(10);
  m_Table.set_col_spacings(10);

  /* pack the table into the scrolled window */
  m_ScrolledWindow.add(m_Table);

  /* this simply creates a grid of toggle buttons on the table
   * to demonstrate the scrolled window. */
  for(int i = 0; i < 10; i++)
  {
     for(int j = 0; j < 10; j++)
     {
        char buffer[32];
        sprintf(buffer, "button (%d,%d)\n", i, j);
        Gtk::Button* pButton = Gtk::manage(new Gtk::ToggleButton(buffer));
        m_Table.attach(*pButton, i, i + 1, j, j + 1);
     }
  }

  /* Add a "close" button to the bottom of the dialog */
  m_Button_Close.signal_clicked().connect(slot(*this, &ExampleWindow::on_button_close));

  /* this makes it so the button is the default. */
  m_Button_Close.set_flags(Gtk::CAN_DEFAULT);

  Gtk::Box* pBox = get_action_area();
  if(pBox)
    pBox->pack_start(m_Button_Close);

  /* This grabs this button to be the default button. Simply hitting
   * the "Enter" key will cause this button to activate. */
  m_Button_Close.grab_default();

  show_all_children();
}

ExampleWindow::~ExampleWindow()
{
}

void ExampleWindow::on_button_close()
{
  hide();
}

File: main.cc

#include <gtkmm/main.h>
#include "examplewindow.h"

int main(int argc, char *argv[])
{
  Gtk::Main kit(argc, argv);

  ExampleWindow window;
  Gtk::Main::run(window); //Shows the window and returns when it is closed.

  return 0;
}

The following program uses a Gtk::AspectFrame to present a drawing area whose aspect ratio will always be 2:1, no matter how the user resizes the top-level window.

TODO: screenshot

Source Code

File: examplewindow.h

#ifndef GTKMM_EXAMPLEWINDOW_H
#define GTKMM_EXAMPLEWINDOW_H

#include <gtkmm.h>

class ExampleWindow : public Gtk::Window
{
public:
  ExampleWindow();
  virtual ~ExampleWindow();

protected:

  //Child widgets:
  Gtk::AspectFrame m_AspectFrame;
  Gtk::DrawingArea m_DrawingArea;
};

#endif //GTKMM_EXAMPLEWINDOW_H

File: examplewindow.cc

#include "examplewindow.h"

ExampleWindow::ExampleWindow()
: m_AspectFrame("2x1", /* label */
    Gtk::ALIGN_CENTER, /* center x */
    Gtk::ALIGN_CENTER, /* center y */
    2.0, /* xsize/ysize = 2 */
    false /* ignore child's aspect */)
{
  set_title("Aspect Frame");
  set_border_width(10);

  // Add a child widget to the aspect frame */
  // Ask for a 200x200 window, but the AspectFrame will give us a 200x100
  // window since we are forcing a 2x1 aspect ratio */
  m_DrawingArea.set_size_request(200, 200);
  m_AspectFrame.add(m_DrawingArea);

  // Add the aspect frame to our toplevel window:
  add(m_AspectFrame);

  show_all_children();
}

ExampleWindow::~ExampleWindow()
{
}

File: main.cc

#include <gtkmm/main.h>
#include "examplewindow.h"

int main(int argc, char *argv[])
{
  Gtk::Main kit(argc, argv);

  ExampleWindow window;
  Gtk::Main::run(window); //Shows the window and returns when it is closed.

  return 0;
}

This example right-aligns a button in a window by using an Alignment widget.

Source Code

File: examplewindow.h

#ifndef GTKMM_EXAMPLEWINDOW_H
#define GTKMM_EXAMPLEWINDOW_H

#include <gtkmm.h>

class ExampleWindow : public Gtk::Window
{
public:
  ExampleWindow();
  virtual ~ExampleWindow();

protected:
  //Signal handlers:
  virtual void on_button_clicked();

  //Child widgets:
  Gtk::Alignment m_Alignment;
  Gtk::Button m_Button;
};

#endif //GTKMM_EXAMPLEWINDOW_H

File: examplewindow.cc

#include "examplewindow.h"

ExampleWindow::ExampleWindow()
: m_Alignment(Gtk::ALIGN_RIGHT, Gtk::ALIGN_CENTER, 0.0, 0.0),
  m_Button("Close")
{
  set_title("Gtk::Alignement");
  set_border_width(10);
  set_default_size(200, 50);

  add(m_Alignment);

  m_Alignment.add(m_Button);

  m_Button.signal_clicked().connect( SigC::slot(*this, &ExampleWindow::on_button_clicked) );

  show_all_children();
}

ExampleWindow::~ExampleWindow()
{
}

void ExampleWindow::on_button_clicked()
{
  hide();
}

File: main.cc

#include <gtkmm/main.h>
#include "examplewindow.h"

int main(int argc, char *argv[])
{
  Gtk::Main kit(argc, argv);

  ExampleWindow window;
  Gtk::Main::run(window); //Shows the window and returns when it is closed.

  return 0;
}
